| Model Number: | JC3248R035R |
| MOQ: | 50PCS |
| Price: | ￥55/PCS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000PCS/day |

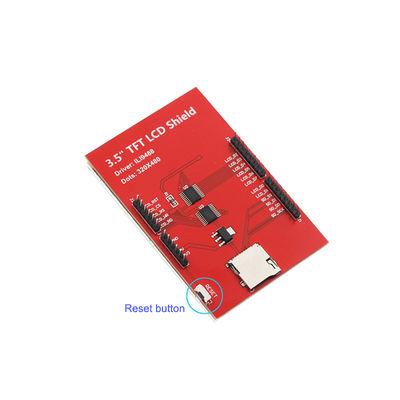

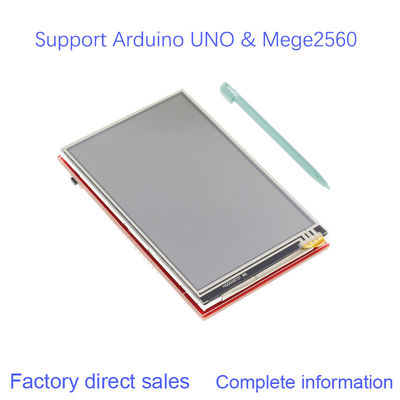

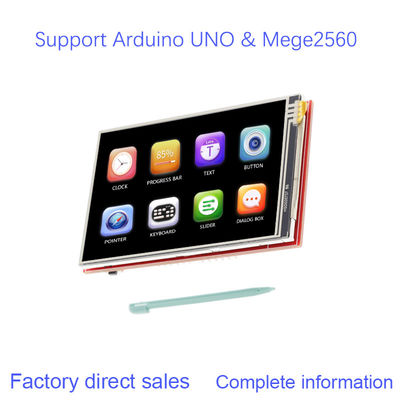

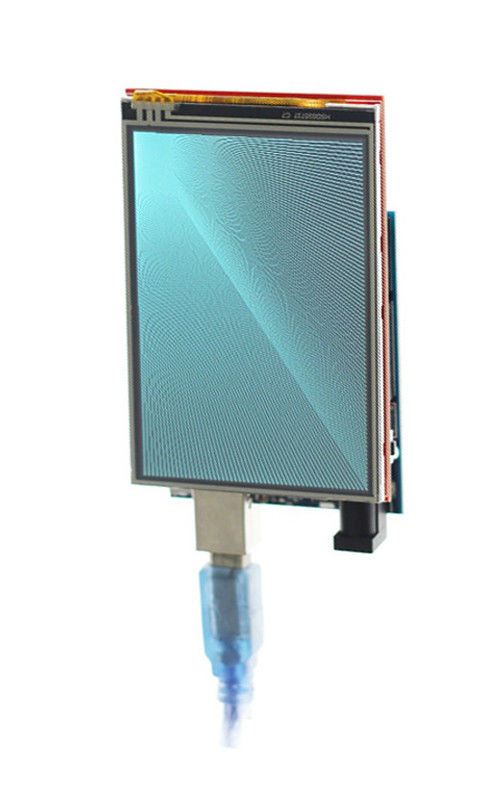

This touch screen module with high resolution can reach 480 x 320, and TF (SD) card slot is designed on the back of the board, so that you can easily insert the card. The touch screen uses resistance touch, and the touch chip is XPT2046, which is very sensitive and convenient to use. There is a level conversion chip on the board, which can be directly inserted with the arduino motherboard. The default controller is ili9488. You can also contact us to customize other types of touch. We provide a large number of sample programs for customers to download and learn.
| Name | Parameter |
| SKU | JC3248R035R |
| Display Color | RGB 65K color |
| Touch mode | Resistive touch |
| Screen Size | 3.5(inch) |
| Type | TFT |
| Driver IC | ILI9488 |
| Resolution | 480*320 (Pixel) |
| Module Interface | 8-bit parallel interface |
| Active Area | 73.44*48.96(mm) |

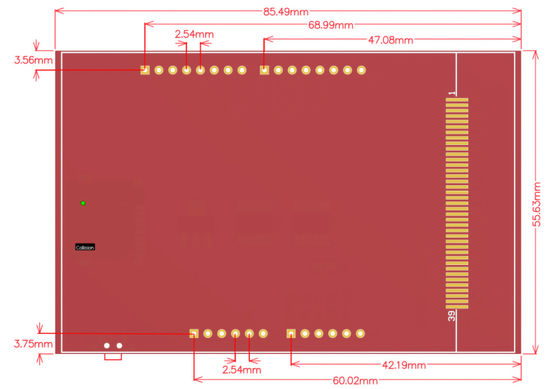

| Module PCB Size | 85.49*55.63(mm) |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -40℃~70℃ |
| Operating Voltage | 5V/3.3V |
| Power Consumption | TBD |
| Product Weight(Package containing) | 44g(have touch screen),55g(have no touch screen) |
| Number | Pin Label | Pin Description |
| 1 | LCD_RST | LCD bus reset signal, low level reset |
| 2 | LCD_CS | LCD bus chip select signal, low level enable |
| 3 | LCD_RS | low level: command, high level: data |
| 4 | LCD_WR | LCD bus write signal |
| 5 | LCD_RD | LCD bus read signal |
| 6 | GND | Power ground |
| 7 | 5V | 5V power input |
| 8 | 3V3 | 3.3V power input, this pin can be disconnected |
| 9 | LCD_D0 | LCD 8-bit data Bit0 |
| 10 | LCD_D1 | LCD 8-bit data Bit1 |
| 11 | LCD_D2 | LCD 8-bit data Bit2 |
| 12 | LCD_D3 | LCD 8-bit data Bit3 |
| 13 | LCD_D4 | LCD 8-bit data Bit4 |
| 14 | LCD_D5 | LCD 8-bit data Bit5 |
| 15 | LCD_D6 | LCD 8-bit data Bit6 |
| 16 | LCD_D7 | LCD 8-bit data Bit7 |
| 17 | SD_SS | SD card SPI bus chip select signal, low level enable |
| 18 | SD_DI | SD card SPI bus MOSI signal |
| 19 | SD_DO | SD card SPI bus MISO signal |
| 20 | SD_SCK | SD card SPI bus clock signal |
