| Model Number: | JC3248S035N |
| MOQ: | 300 |
| Price: | ￥58/PCS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000pcs/day |

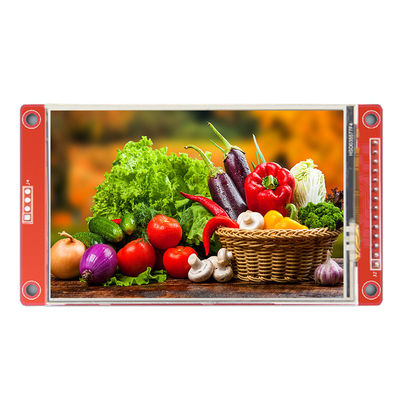

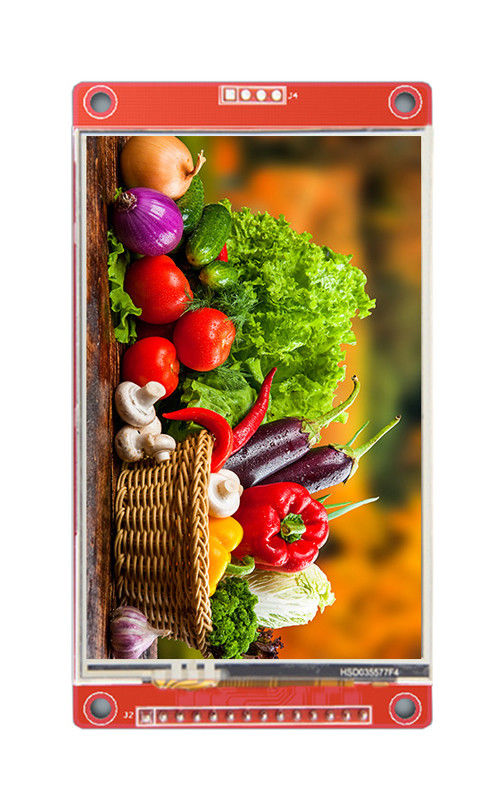

3.5 inch Without touch SPI LCD TFT Module 3.5 Inch 480*320 TFT display Module SPI Panel Driver IC ILI9488 Support
Provide 51 MCU, stm32 MCU, Arduino sample program, copy the download link to the browser to download the information:
The LCD module hardware circuit comprises two parts: an LCD display control circuit and a backlight control circuit.
The LCD display control circuit is used to control the pins of the LCD, including control pins and data transfer pins.
The touch screen control circuit can control touch screen touch corresponding and touch coordinate reading (touch screen optional).
| Name | Parameter |
| SKU | JC3248R035N |
| Display Color | RGB 65K color |
| Touch mode | Without touch |
| Screen Size | 3.5(inch) |
| Type | TFT |
| Driver IC | ILI9488 |
| Resolution | 320*480 (Pixel) |
| Module Interface | 4-wire SPI |
| Active Area | 73.44(L))X48.96(W)MM |
| External dimension | 99.0(L)X54.9(W)MM |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ |
| Operating Voltage | 3.3V |
| Visual angle | 12:00 o'clock |
| Product Weight(Package containing) | 50(g) |
| Number | Pin Label | Pin Description |
| 1 | VCC | 5.0 power input |
| 2 | GND | Power ground |
| 3 | CS | LCD chip select signal, active low |
| 4 | REST | LCD reset signal, low level reset |
| 5 | D/C | Control register selection |
| 6 | SDI(MOSI) | Control data transmission |
| 7 | SCK | Clock signal |
| 8 | LED | Backlight control, high level lighting, connected to 3.3V |
| 9 | SDO(MISO) | SPI bus read data signal |
| 10 | T_CLK | Touch SPI bus clock signal |
| 11 | T_CS | Touch screen chip selection signal, low-level enable |
| 12 | T_DIN | Touch SPI bus input |
| 13 | T_DO | Touch SPI bus output |
| 14 | T_IRQ | Touch screen interrupt signal, low level when touch is detected |
