| Model Number: | JC8048P050C |
| MOQ: | 50PCS |
| Price: | ￥198/PCS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000PCS/day |
5.0 inch Capacitive Touch Panel 800*480 MIPI IPS TFT DSI Multi-Touch LCD Module Display Monitor Screen for Raspberry Pi

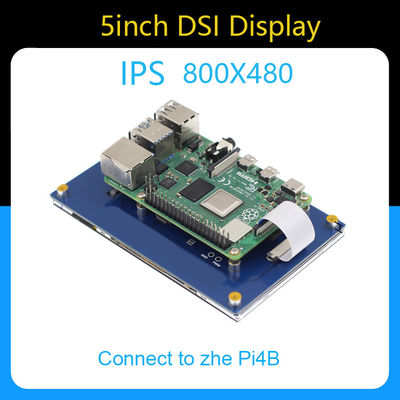

This screen is suitable for raspberry MIPI DSI interface (the main board identification is: DISPLAY/15Pin 1.0mm spacing), and cannot be used for computer host or raspberry DSI motherboard without MIPI DSI interface (such as Zero), and cannot be used for other chip motherboards
The raspberry MIPI DSI interface outputs directly, plug and play, without installing drivers; [Due to the new system branch of the raspberry pie system, the system after May 21 needs to comment the following statement in the config.txt file (the config file is located in the root directory of the TF card, that is,/boot): # dtoverlay=vc4-kms-v3d (that is, add # in the front, note that if there are two sentences that are the same, it is better to comment them out)]
There is no need for separate power supply, and touch+display+power supply are all solved by a flexible flat cable;

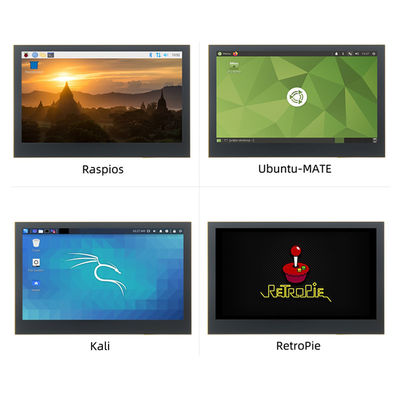

Support Raspbian multi-touch; Support Ubuntu/Kali/Win10 loT single touch; Support for Retropie

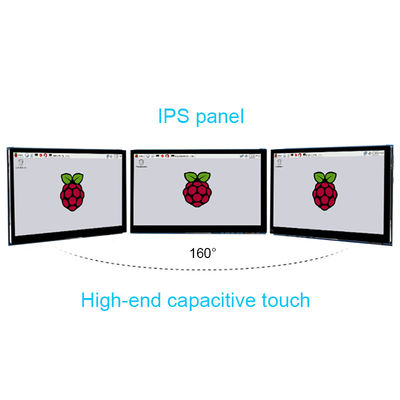

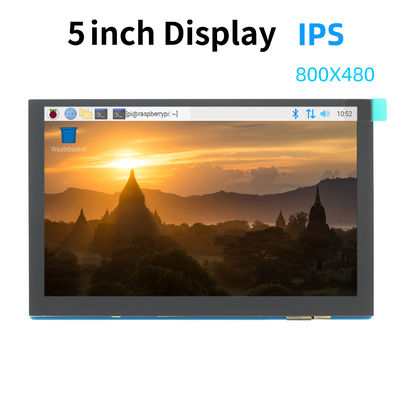

800x480 resolution display, 5-inch IPS/TN optional
Support PWM backlight brightness adjustment and built-in backlight button, which can adapt to different use environments
