4.3" Raspberry Pi Module 800x480 MIPI IPS TFT LCD Module Display Monitor Screen

4.3" Raspberry Pi Module 800x480 MIPI IPS TFT LCD Module Display Monitor Screen

Model Number:	JC8048P043N
MOQ:	50PCS
Price:	￥159/PCS
Payment Terms:	L/C, T/T
Supply Ability:	5000PCS/day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Size:

4.3inch

Resolution:

800*480

Touch:

Without Touch

Name:

JC8048P043N

Viewing Angle:

IPS Full Viewing Angle

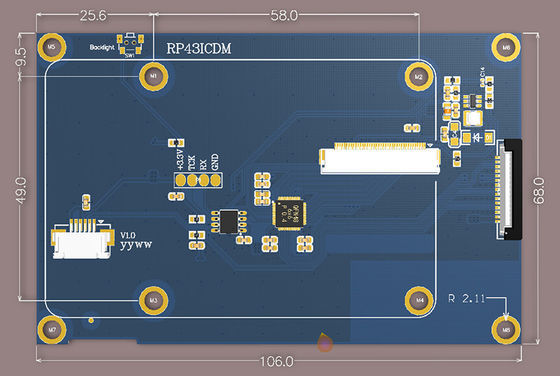

External Dimension:

106*68mm

Supply Ability:

5000PCS/day

Highlight:

4.3" Raspberry Pi Module 800x480

Raspberry Pi Module 800x480 MIPI

MIPI IPS TFT LCD Module

Product Description

4.3" 4.3 inch Without Touch800*480 MIPI IPS TFT DSI Multi-Touch Panel LCD Module Display Monitor Screen for Raspberry

4.3" 800*480 DSI IPS Display for RaspBerry Pi

RaspBerry Pi Board is not including in the package

This screen is suitable for raspberry pi Mipi DSI interface (motherboard identification: display / 15pin 1.0mm spacing), can not be used for computer host or raspberry pi motherboard without Mipi DSI interface (such as zero), and can not be suitable for other chip motherboards,

Raspberry pi Mipi DSI interface outputs directly, plug and play, without installing driver;

Without separate power supply, touch + Display + power supply are all solved by one flexible cable;

Support raspbian multi touch; Support Ubuntu / Kali / win10 lot single touch; Retropi support

800x480 resolution display, 4.3-inch IPS / optional

Support PWM backlight brightness adjustment to adapt to different use environments (backlight adjustment buttons have been added in the whole series)

Please connect or disconnect the cable after the raspberry pi is powered off, otherwise the display and raspberry pi may be damaged!!!

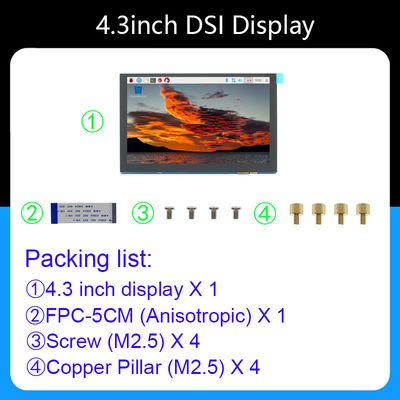

4.3" Raspberry Pi Module 800x480 MIPI IPS TFT LCD Module Display Monitor Screen 0

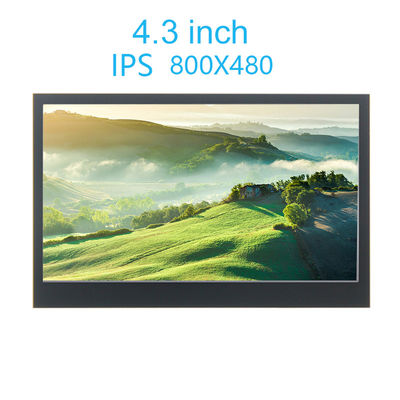

4.3" Raspberry Pi Module 800x480 MIPI IPS TFT LCD Module Display Monitor Screen 1

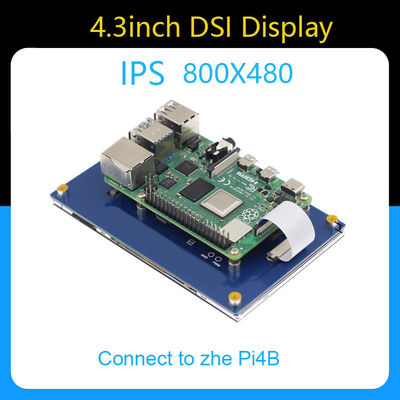

4.3" Raspberry Pi Module 800x480 MIPI IPS TFT LCD Module Display Monitor Screen 2
