Resistance Touch ESP32 Display Module 5.0" 800x480 ESP32 Tft Lcd Spi WIFI Bluetooth

Name

Resistance Touch ESP32 Display Module 5.0" 800x480 ESP32 Tft Lcd Spi WIFI Bluetooth

Model Number:	ESP32-8048S050R
MOQ:	30PCS
Price:	￥198/PCS
Payment Terms:	L/C, T/T
Supply Ability:	5000PCS/day

Detail Information

Product Description

Detail Information

Place of Origin:

china

Size:

5.0inch

Resolution:

800*480

Touch:

Resistance Touch

PCB Color:

Yellow

Type:

TFT

Display Color:

RGB 65K Color

Driver Chip:

ST7262

Effective Display Area:

108.00* 64.80(mm)

Module Size:

137.0*84.0(mm)

View:

IPS

Supply Ability:

5000PCS/day

Highlight:

Resistance Touch ESP32 Display Module

,

ESP32 Display Module 5.0" 800x480

,

ESP32 Tft Lcd Spi WIFI Bluetooth

Product Description

5.0 inch Resistance Touch 5.0" 800*480 ESP32 Arduino LVGL WIFI&Bluetooth Smart Display Screen 3.5inch LCD TFT Module

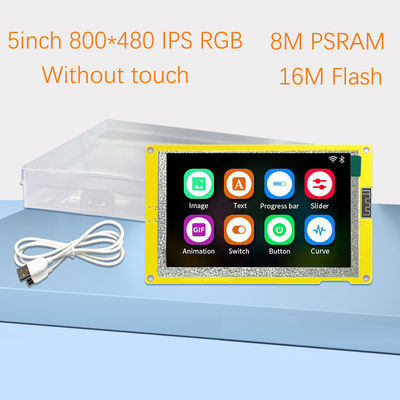

ESP32 development board-8M PSRAM 16M Flash, standard 5.0-inch IPS TFT screen and Without touch or Capacitive touch , support one-key automatic download, provide LVGL demo and arduino examples

ESP32-ESP32-8048S050 motherboard introductior

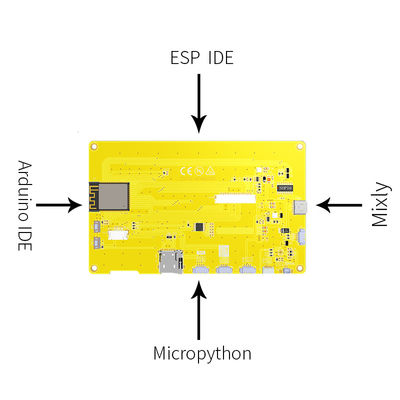

ESP32 = MCU + WiFi + Bluetooth
ESP32-8048S050 development board is basedon the company's ESP32-S3 controller, dual-coreCPU, clock frequency up to 240MHZ,

integrates awealth of resource peripherals, high-speed SDIOSPI,

UART and other functions, supports automatic download

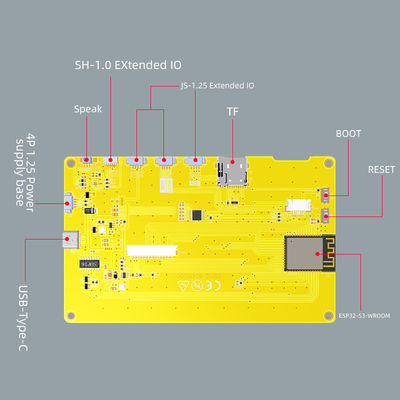

Description:

1,ESP32-S3 dual-core Xtensa 32-bit LX7 microprocessor, up to 240 MHz with 384KB ROM, 512KB SRAM. 2.4GHz WiFi and Bluetooth 5
2,Flash 16MB, Psram 8MB
3,Display Interface: RGB565
4,Screen: 5.0-inch display with 480x480 resolution
5,Audio: Codec, Audio amplifier, speaker connector
6,USB: Type-C
7,Power Supply: 5V

Features

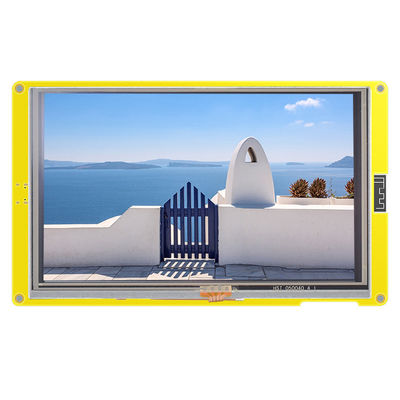

●5.0-inch color screen, support 16 BIT RGB 65K color display, display rich
colors
●800X480 resolution
●The sample program has been programmed in the factory and can be
plugged in
●With TF card slot for easy expansion storage
●Provide arduino library functions and sample programs to facilitate
rapid secondary development
●Support one-click download program
●Military-grade process standards, long-term stable work

Shipment:

When you place an order,please choose a shipping method and pay for the order including the shipping fee.Generally,we will send the items as soon as possible once your payment is completed.

We do not guarantee delivery time on all international shipments due to differences in customs clearing times in individual countries,which may affect how quickly your product is inspected. Please note that buyers are responsible for all additional customs fees,broderage fees,duties,and taxes for importation into your country.These additional fees may be collected at time of delivery.We will not refund shipping charges for refused shipments.

We are not responsible for any custom duty or import tax.

The shipping cost does not include any import taxes,and buyers are responsible for customs duties. I understand that you are worried about any possible extra cost for the items.Based on past experience.

Resistance Touch ESP32 Display Module 5.0" 800x480 ESP32 Tft Lcd Spi WIFI Bluetooth 0

Resistance Touch ESP32 Display Module 5.0" 800x480 ESP32 Tft Lcd Spi WIFI Bluetooth 1

Resistance Touch ESP32 Display Module 5.0" 800x480 ESP32 Tft Lcd Spi WIFI Bluetooth 2

Resistance Touch ESP32 Display Module 5.0" 800x480 ESP32 Tft Lcd Spi WIFI Bluetooth 3

Resistance Touch ESP32 Display Module 5.0" 800x480 ESP32 Tft Lcd Spi WIFI Bluetooth 4

Resistance Touch ESP32 Display Module 5.0" 800x480 ESP32 Tft Lcd Spi WIFI Bluetooth 5

Resistance Touch ESP32 Display Module 5.0" 800x480 ESP32 Tft Lcd Spi WIFI Bluetooth 6

Resistance Touch ESP32 Display Module 5.0" 800x480 ESP32 Tft Lcd Spi WIFI Bluetooth 7
