| Model Number: | ESP32-4832S035N |
| MOQ: | 30PCS |
| Price: | ￥95/PCS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000PCS/day |

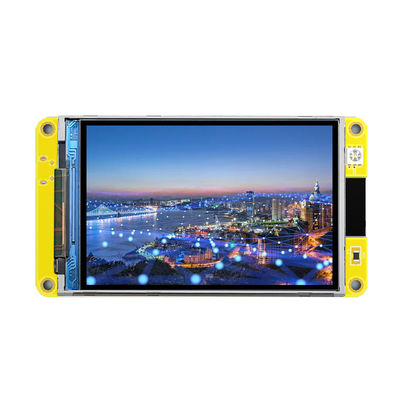

The 3.5 inch Resolution 320*480 ESP32 Tft color touchless display module open LCD panel is a versatile and easy-to-use display module that can be used in a wide range of applications. It features a high-resolution color display and a touchless interface, which allows for intuitive and convenient user interaction without the need for physical buttons or touch sensors.
To use this display module with an ESP32 microcontroller, you can follow these steps:
1.Connect the display module to the ESP32 microcontroller via SPI interface.
2.Install the appropriate libraries for the display module and the touchless interface. There are several libraries available for this purpose, such as the Adafruit GFX library and the Adafruit ILI9488 library.
3.Initialize the display module and the touchless interface in your code using the appropriate functions provided by the libraries.
4.Write your code to display images, text, and other graphics on the display module and to handle touchless events.
| Size | 3.5 inch |
| Type | TFT |
| Driver chip | ST7796 |
| Resolution | 320*480(Pixel) |
| Effective display area | 73.44*48.96(mm) |
| Module size | 101.5*54.9(mm) |
| View | >60° |
| Operating temperature | -20℃~70℃ |
| storage temperature | -30℃~80℃ |
| Operating Voltage | 5V |
| Power consumption | About 160mA |
| Product weight | About 50g |
FAQ
What is the lifespan of TFT LCD modules?
The lifespan of TFT LCD modules depends on various factors, such as the quality of the components, the operating conditions, and the frequency of use. In general, TFT LCD modules can last for several years with proper care and maintenance.
What are the advantages of esp32 ?
ESP32 has advantages such as dual core processors, low power consumption, Wi Fi and Bluetooth capabilities, rich peripheral interfaces, abundant development resources, and ease of development. These advantages make ESP32 an excellent choice in fields such as smart homes, the Internet of Things, and smart wearables
What SD cards are supported by the SDIO/SPI interface of ESP32?
SDSC card: Standard capacity SD card with a capacity of 2GB or less.
SDHC card: High capacity SD card with a capacity between 2GB and 32GB.
SDXC card: Expansion capacity SD card, with a capacity between 32GB and 2TB.
