| Model Number: | ESP32-8048S070R |
| MOQ: | 30PCS |
| Price: | ￥208/PCS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000PCS/day |

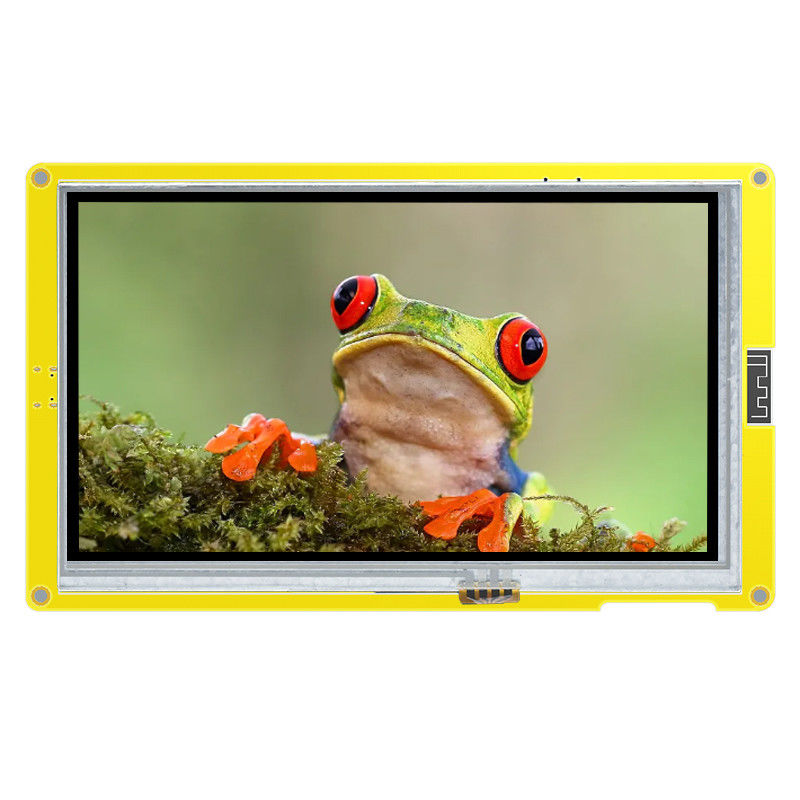

The ESP32 Display Module is a cutting-edge product that combines the power of the ESP32 microcontroller with a high-quality display, providing an efficient and user-friendly solution for a wide range of applications. This product is designed to provide a seamless and versatile display experience, making it ideal for both industrial and consumer use.
Key Features:
The ESP32 Display Module is a highly functional and versatile display component that offers a range of benefits for users. It is equipped with a large and effective display area of 153.84*85.63mm, providing a vivid and clear display for all types of content. This makes it perfect for applications that require detailed and precise information to be displayed, such as in industrial control systems, medical equipment, and smart home devices.
The SKU of the product is ESP32-8048S070R, which is a unique identifier that helps customers easily identify and purchase the module. The module size is 181.0*108.0mm, making it compact and easy to integrate into various devices. With a weight of only 260g, it is lightweight and portable, making it suitable for use in handheld devices and other portable electronics.
The ESP32 Display Module offers a wide viewing angle of >60°, ensuring that the display is visible from various angles without any distortion. This makes it suitable for use in public spaces and shared devices, providing a comfortable viewing experience for all users.
The module is designed to work seamlessly with the ESP32 microcontroller, offering a powerful combination of display and processing capabilities. The ESP32 is a highly efficient and low-power microcontroller that enables the display module to consume minimal power while still delivering optimal performance.
The ESP32 Display Module is ideal for a range of applications, including but not limited to:
The ESP32 Display Gear is a comprehensive solution that combines the ESP32 Display Module with various other components, providing a complete display system for users. It includes a range of accessories such as cables, connectors, and mounting brackets, making it easy to install and use.
The ESP32 Display Gear is designed to provide a plug-and-play experience, allowing users to quickly and easily set up the display module without any technical expertise. It is compatible with various microcontrollers and can be easily integrated into existing systems and projects.
The ESP32 Display Gear is highly customizable, allowing users to choose from a range of options such as display size, resolution, and touch functionality. This makes it suitable for a wide range of applications and ensures that users get the best display experience for their specific needs.
In conclusion, the ESP32 Display Module is a powerful and versatile product that offers a range of features and benefits for users. With its large display area, lightweight design, and wide viewing angle, it is perfect for various applications in both industrial and consumer settings. The ESP32 Display Gear provides a complete solution for users, making it easy to set up and use the display module in various projects. The combination of the ESP32 Display Module and ESP32 Display Gear makes it a must-have for anyone looking for an efficient and user-friendly display solution.
| ESP32 Display Module | ESP32 Display Component |
|---|---|
| Power consumption | About 500mA |
| Effective display area | 153.84* 85.63(mm) |
| SKU | ESP32-8048S070R |
| Size | 7.0Inch |
| Module size | 181.0*108.0(mm) |
| Resolution | 800*480(Pixel) |
| Operating Voltage | 5V |
| View | >60° |
| Product weight | About 260g |
| Type | TFT |
The ESP32 Display Module is a revolutionary product that will change the way you see and use displays. This high-performance display device is designed and manufactured in China, with a model number of ESP32-8048S070R. It is perfect for both personal and commercial use, making it an essential item for any tech-savvy individual or business.
The ESP32 Display Module is suitable for a wide range of applications, making it a versatile and valuable gadget. Here are some of the common scenarios where this display tool can be used:
If you are interested in purchasing the ESP32 Display Module, please use the following HTML code to place your order:
<form action="https://www.esp32displaymodule.com/order"> <label for="model-number">Model Number: </label> <input type="text" id="model-number" name="model-number" value="ESP32-8048S070R"><br> <label for="origin">Place of Origin: </label> <input type="text" id="origin" name="origin" value="China"><br> <label for="min-order-quantity">Minimum Order Quantity: </label> <input type="number" id="min-order-quantity" name="min-order-quantity" value="30" min="1"><br> <label for="delivery-time">Delivery Time: </label> <input type="number" id="delivery-time" name="delivery-time" value="28" min="1">days<br> <label for="payment-terms">Payment Terms: </label> <select id="payment-terms" name="payment-terms"> <option value="L/C">L/C</option> <option value="T/T">T/T</option> </select><br> <label for="supply-ability">Supply Ability: </label> <input type="number" id="supply-ability" name="supply-ability" value="5000" min="1">PCS/day<br> <label for="size">Size: </label> <input type="text" id="size" name="size" value="7.0Inch"><br> <label for="effective-display-area">Effective Display Area: </label> <input type="text" id="effective-display-area" name="effective-display-area" value="153.84 * 85.63(mm)"><br> <label for="type">Type: </label> <input type="text" id="type" name="type" value="TFT"><br> <label for="operating-voltage">Operating Voltage: </label> <input type="text" id="operating-voltage" name="operating-voltage" value="5V"><br> <label for="power-consumption">Power Consumption: </label> <input type="text" id="power-consumption" name="power-consumption" value="About 500mA"><br> <input type="submit" value="Submit"> </form>
Thank you for choosing the ESP32 Display Module. We guarantee high-quality and timely delivery of your order. With a supply ability of 5000PCS per day, we are well-equipped to meet your requirements. Don't miss out on this amazing display gadget - order now!
Model Number: ESP32-8048S070R
Place of Origin: China
Minimum Order Quantity: 30PCS
Delivery Time: 28 days
Payment Terms: L/C, T/T
Supply Ability: 5000PCS/day
Power consumption: About 500mA
View: >60°
Resolution: 800*480(Pixel)
Module size: 181.0*108.0(mm)
SKU: ESP32-8048S070R
Customize your ESP32 Display Appliance with our professional and reliable Customized Service.
Our ESP32 Display Module is manufactured in China, ensuring high quality and competitive prices.
With a minimum order quantity of only 30PCS, we cater to small and large businesses alike.
Our fast delivery time of 28 days ensures you receive your customized product in a timely manner.
We offer flexible payment terms of L/C and T/T to suit your business needs.
Our supply ability of 5000PCS per day guarantees a steady and reliable source for your customized ESP32 Display Device.
The power consumption of our ESP32 Display Module is approximately 500mA, ensuring energy efficiency.
The wide viewing angle of >60° allows for clear visibility from various angles.
The high resolution of 800*480 pixels provides a clear and sharp display.
The compact size of our module, measuring 181.0*108.0(mm), allows for easy integration into your display appliance.
Choose our SKU: ESP32-8048S070R for your customized ESP32 Display Module.
The ESP32 Display Module is carefully packaged to ensure safe and secure transportation to our customers. The packaging includes:
Our packaging is designed to withstand the rigors of shipping and handling, and we take great care to ensure that your ESP32 Display Module arrives in pristine condition.
For shipping, we offer various options to fit your needs. We work with trusted carriers to ensure timely and reliable delivery. Our shipping options include:
Once your order has been shipped, you will receive a tracking number so you can track your package's journey to your doorstep.
At ESP32, we are committed to providing high-quality products and exceptional customer service. If you have any questions or concerns about your packaging or shipping, please don't hesitate to contact us.
ESP-32-S3 Bluetooth e WIFI Dual Core CPU a Basso Consumo energetico MCU modulo ESP-32-S3
Parameter:
Use low-power dual-core 32-bit CPU, which can be used as an application processor.
The main frequency is up to 240MHz, and the computing power is up to 600 DMIPS
Built-in 520 KB SRAM
Support UART/SPI/I2C/PWM/ADC/DAC and other interfaces
Support OV2640 and OV7670 cameras, built-in flash
Support picture WiFI upload
Support TF card
Support multiple sleep modes.
Embedded Lwip and FreeRTOS
Support STA/AP/STA+AP working mode
Support Smart Config/AirKiss one-click network configuration
Support secondary development
Specifications
Working voltage 4.75-5.25V
SPIFlash default 32Mbit
RAM internal 520KB
Wi-Fi 802.11b/g/n/e/i
Bluetooth Bluetooth 4.2BR/EDR and BLE standard
Support interface (2Mbps) UART, SPI, I2C, PWM
Support TF card, maximum support 4G
IO port 9
Serial port rate default 115200bps
Spectrum range 2400 ~2483.5MHz
Antenna form Onboard PCB antenna, gain 2dBi
Image output format: JPEG (only OV2640 support), BMP, GRAYSCALE
Packaging method DIP-16
Transmit power 802.11b: 17±2dBm (@11Mbps)
802.11g: 14±2dBm (@54Mbps)
802.11n: 13±2dBm (@MCS7)
Receiving sensitivity CCK, 1Mbps: -90dBm
CCK, 11Mbps: -85dBm
6Mbps(1/2BPSK): -88dBm
54Mbps (3/464-QAM): -70dBm
MCS7 (65Mbps, 72.2Mbps): -67dBm
Power consumption Turn off the flash: 180mA@5V
Turn on the flash and adjust the brightness to the maximum: 310mA@5V
Deep-sleep: The lowest power consumption can reach 6mA@5V
Moderm-sleep: the lowest can reach 20mA@5V
Light-sleep: the lowest can reach 6.7mA@5V
Security WPA/WPA2/WPA2-Enterprise/WPS
Working temperature -20 ℃~ 70 ℃
Storage environment -40 ℃~ 125 ℃, <90%RH
Application
Home smart device image transmission
Wireless monitoring
Smart agriculture
QR wireless recognition
Wireless positioning system signal
And other IoT applications
