| Model Number: | ESP32-8048S050N |
| MOQ: | 30PCS |
| Price: | ￥158/PCS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000PCS/day |

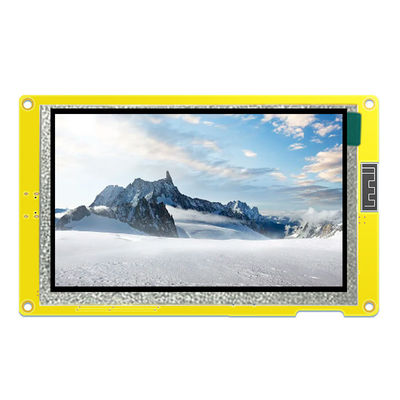

The ESP32-8048S050N is a Dual Core MCU that powers this LCD display module. This ensures that the display screen is fast and efficient, allowing for quick updates and smooth transitions. The effective display area of the display module is 108.00* 64.80(mm), which provides ample space for displaying information and graphics.
This LCD display module is ideal for applications that require a high-quality display screen with a size of 5.0 inches. The TFT type ensures that the images displayed are of high quality and are easy to read. The Dual Core MCU ensures that the display screen is fast and efficient, allowing for quick updates and smooth transitions.
Whether you need a display screen for industrial, commercial, or personal use, the LCD Display Module is an excellent choice. With its 5.0-inch size, TFT type, and Dual Core MCU, this display screen is perfect for a variety of applications. It is easy to install and use, and it provides high-quality images that are clear and easy to read.
| Module size | 137.0*84.0(mm) |
| Type | TFT |
| Display color | RGB 65K Color |
| Size | 5.0 Inch |
| Effective display area | 108.00*64.80(mm) |
| Resolution | 800*480(Pixel) |
| SKU | ESP32-8048S050N |
| Support | 16 BIT RGB 65K color display |
The LCD Display Module product technical support and services include:
Product Packaging:
Shipping:
Q: What is the model number of this LCD display module?
A: The model number of this LCD display module is ESP32-8048S050N.
Q: Where is this LCD display module manufactured?
A: This LCD display module is manufactured in China.
Q: What is the minimum order quantity for this LCD display module?
A: The minimum order quantity for this LCD display module is 30PCS.
Q: What is the size of this LCD display module?
A: The size of this LCD display module is 80mm x 48mm.
Q: What is the resolution of this LCD display module?
A: The resolution of this LCD display module is 320 x 240.
ESP-32-S3 Bluetooth e WIFI Dual Core CPU a Basso Consumo energetico MCU modulo ESP-32-S3
Parameter:
Use low-power dual-core 32-bit CPU, which can be used as an application processor.
The main frequency is up to 240MHz, and the computing power is up to 600 DMIPS
Built-in 520 KB SRAM
Support UART/SPI/I2C/PWM/ADC/DAC and other interfaces
Support OV2640 and OV7670 cameras, built-in flash
Support picture WiFI upload
Support TF card
Support multiple sleep modes.
Embedded Lwip and FreeRTOS
Support STA/AP/STA+AP working mode
Support Smart Config/AirKiss one-click network configuration
Support secondary development
Specifications
Working voltage 4.75-5.25V
SPIFlash default 32Mbit
RAM internal 520KB
Wi-Fi 802.11b/g/n/e/i
Bluetooth Bluetooth 4.2BR/EDR and BLE standard
Support interface (2Mbps) UART, SPI, I2C, PWM
Support TF card, maximum support 4G
IO port 9
Serial port rate default 115200bps
Spectrum range 2400 ~2483.5MHz
Antenna form Onboard PCB antenna, gain 2dBi
Image output format: JPEG (only OV2640 support), BMP, GRAYSCALE
Packaging method DIP-16
Transmit power 802.11b: 17±2dBm (@11Mbps)
802.11g: 14±2dBm (@54Mbps)
802.11n: 13±2dBm (@MCS7)
Receiving sensitivity CCK, 1Mbps: -90dBm
CCK, 11Mbps: -85dBm
6Mbps(1/2BPSK): -88dBm
54Mbps (3/464-QAM): -70dBm
MCS7 (65Mbps, 72.2Mbps): -67dBm
Power consumption Turn off the flash: 180mA@5V
Turn on the flash and adjust the brightness to the maximum: 310mA@5V
Deep-sleep: The lowest power consumption can reach 6mA@5V
Moderm-sleep: the lowest can reach 20mA@5V
Light-sleep: the lowest can reach 6.7mA@5V
Security WPA/WPA2/WPA2-Enterprise/WPS
Working temperature -20 ℃~ 70 ℃
Storage environment -40 ℃~ 125 ℃, <90%RH
Application
Home smart device image transmission
Wireless monitoring
Smart agriculture
QR wireless recognition
Wireless positioning system signal
And other IoT applications
