| Model Number: | JC3224B035N |
| MOQ: | 500 |
| Price: | ￥65/pcs |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000pcs/day |

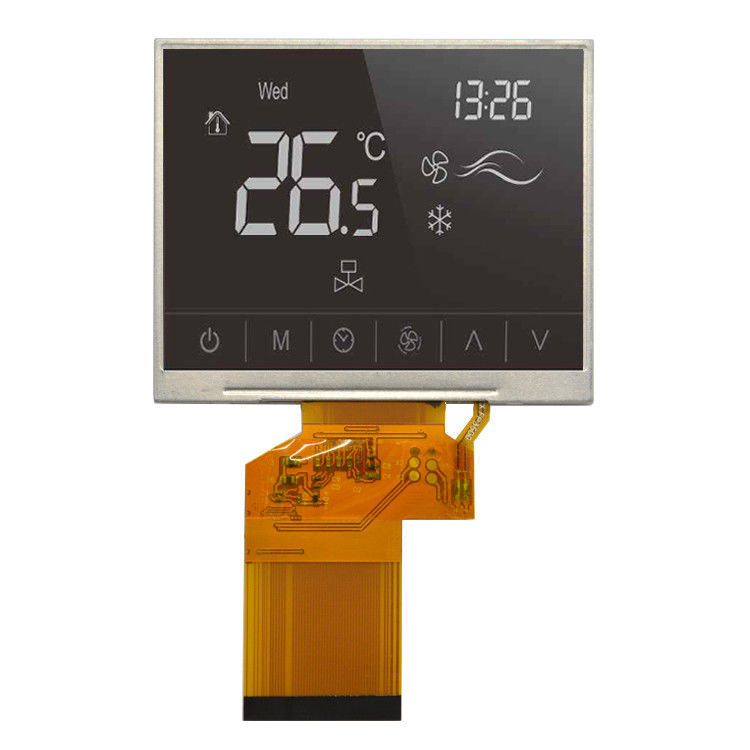

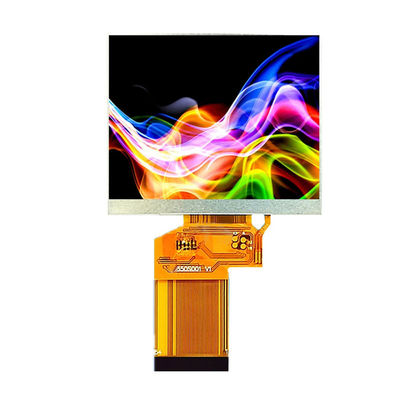

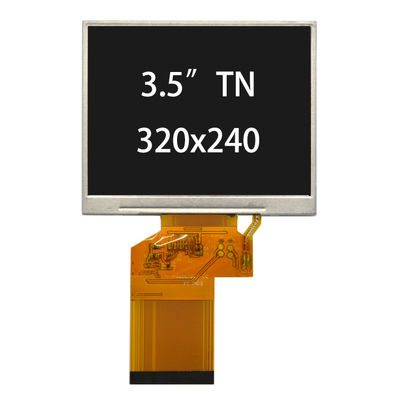

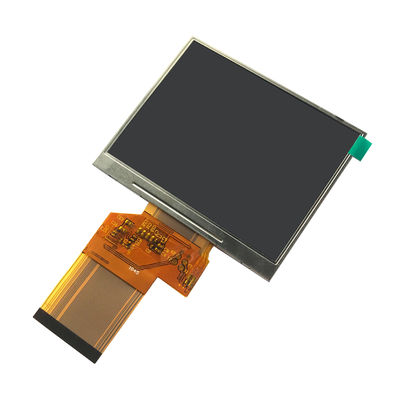

3.5 inch Without Touch 3.5" 240*320 320*240 Tft display Screen 3.5 inch LCD TFT Module Factory Orginal
3.5 inch color TFT-LCD module display, 320x240 dots, video & VGA driver board, can be used in any embedded systems, industrial device, security and hand-held equipment which require display in high quality and colorful video.
Features
● 320x240resolution
● Video&VGA driver board
● Viewing Angle 40°/60°/60°/60°(L/R/U/D)
● Operating temperature -20℃~70℃
● Optional touch screen
● Optional 3.5 inch 4-wire resistive touch panel with USB driver board and cable
● Optional capacitive touch panel with USB controller board and cable
| Item | Specification | ||||
| Part No. | 3.5'' tft lcd module 320x240 dots | ||||
| Outline Dimension(mm) | 77x64 | ||||
| Active Area(mm) | 70.08x52.56 | ||||
| Resolution(dots) | 320*RGB*240 | ||||
| Operating temperature(°C) | -20~+70 | ||||
| Storage temperature(°C) | -30~+80 | ||||
| Number of color | 16.7M color | ||||
| Black light | 6-LED White | ||||
| Display mode | TFT Transmissive Normal black | ||||
| Surface treatment | Antiglare | ||||
| View direction | ALL | ||||
| Weight(g) | TBD | ||||
| Power Consumption(w) | Panel | 0.226(Typ.) | |||
| B/L system | 1.674(Typ.) | ||||
| Interface | RGB | ||||
| Module lifetime(Hours) | 50,000-100,000 | ||||
