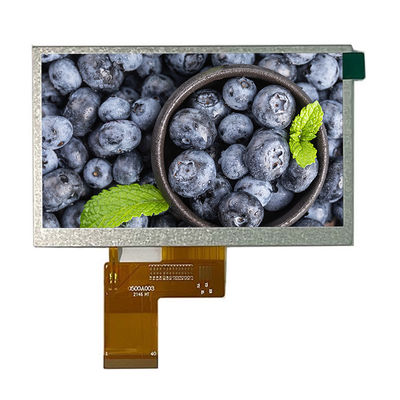

RGB IPS 5 Inch Tft Lcd Display 350 Bright 5 Inch Tft Lcd Module 40PIN

RGB IPS 5 Inch Tft Lcd Display 350 Bright 5 Inch Tft Lcd Module 40PIN

Model Number: JC8048B050N_I
MOQ: 500
Price: ¥65/pcs
Payment Terms: L/C, T/T
Supply Ability: 5000pcs/day
Detail Information
Place of Origin:
China
Size:
5.0inch
Resolution:
800*480
Touch:
Without Touch
Driver IC:
ST7262
Panel:
IPS
Name:
JC8048B050N_I
Supply Ability:
5000pcs/day
Highlight:

5 Inch Tft Lcd Display 40PIN

,

RGB IPS 5 Inch Tft Lcd Display

,

5 Inch Tft Lcd Module 40PIN

Product Description

5.0 inch Without touch IPS 800xRGBx480 Driver 350 bright TFT lcd display module 40PIN RGB



TFT screen 800x480 display panel 5 inch lcd with RGB interface

Product Description
Function Feature:
1. 800x480 5 inch lcd display with RGB interface
2. The LCD support to produce with capacitive touch panel or resistive touch panel
3. OEM and ODM service is acceptable.
4. Application: Portable navigation, portable dvd player, MP4 PMP, MID UMPC, automotive display



Model
JC8048B050N_I
Size
5.0 inch
Outline Size (mm)
120.7 x 75.9 x 3
Active Area (mm)
108 x 64.8
Resolution
800 x 480
PIN
40
Driver IC
ST7262
LED
12pcs
Brightness (cd/m2)
300
Interface
RGB
Viewing Angle
6:00
Touch Panel
CTP/RTP optional
