| Model Number: | JC8048B070N |
| MOQ: | 500 |
| Price: | ￥65/pcs |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000pcs/day |

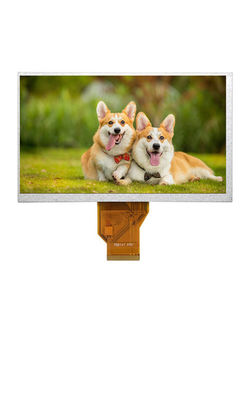

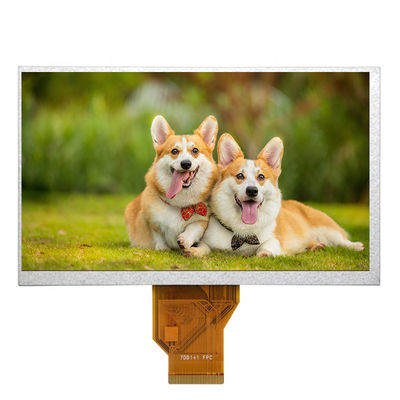

7 inch 800xRGBx480 TN Without touch 50PIN RGB Driver 350 bright TFT lcd display module
JC8048B070N is a TFT-LCD which is composed of a TFT-LCD panel, driver IC, FPC, a back light, unit. The 7.0 display area contains 800 x 480 pixels and can display up to 16.7M colors. This product accords with RoHS environmental criterion. 7" 800*480 standard size TFT color liquid module with CTP can be applicable on vehicle electronics, educational electronics, home appliance, tax control, instrucment, intelligent equipments, medical and electrical power equipments, etc.
Product Paramenters
| item | value |
| Type | TFT LCD |
| Display Size | 7 inch |
| Supplier Type | Manufacturer |
| Place of Origin | China |
| Model Number | JC8048B070C |
| Type | TFT |
| Resolution | 1024*600 RGB |
| Brightness | 350 nits |
| Driver IC | ILI6122 |
| Display mode | Transmissive |
| Backlight Type | 27 LEDs |
