| Model Number: | TJC4827X543-011R |
| MOQ: | 50PCS |
| Price: | ￥179/PCS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000PCS/day |

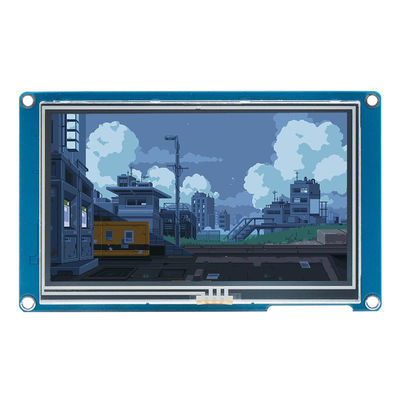

4.3 Inch LCD-TFT HMI Display Module Intelligent Series RGB 65K Color
Product Features:
Compatible with Raspberry Pi A+, B+ and Raspberry Pi 2.
480 x 272 Resolution
RGB 65K true to life colours
TFT Screen with integrated 4-wire Resistive Touch Panel
Easy 4 pin interface to any TTL Serial Host
16M Flash memory for User Application Code and Data
On board micro-SD card for firmware upgrade
Visual Area:95.04mm(L)×53.86mm(W)
Adjustable Brightness:0~230 nit, the interval of adjustment is 1%
5V250mA power consumption
CE/EMC, RoHS certified
Editor is a free human-machine interface (HMI) GUI development software The software offers an easy way to create an intuitive and superb touch user interface even for beginners. Add a static picture as a background, define functions by components, you can make a simple GUI in minutes. The easy Drag-and-Drop components and simple ASCII text-based instructions will dramatically reduce your HMI project development workloads and develop projects rapidly in a cost-effective way. best balance HMI solution between cost and benefit with a low and decreased learning curve.
