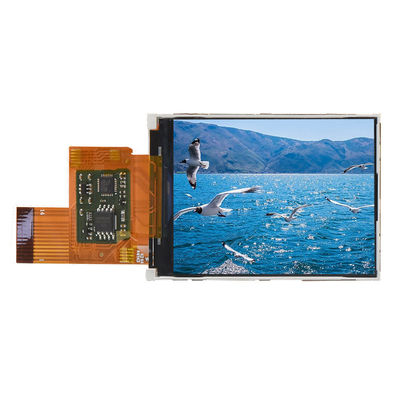

3584 Byte SRAM 2.4 Inch Lcd Display Module Resistive Touch COF HMI LCD TFT Module

3584 Byte SRAM 2.4 Inch Lcd Display Module Resistive Touch COF HMI LCD TFT Module

3584 Byte SRAM 2.4 Inch Lcd Display Module Resistive Touch COF HMI LCD TFT Module

Model Number: TJC3224T124_011R_F
MOQ: 500PCS
Price: ￥39/PCS
Payment Terms: L/C, T/T
Supply Ability: 5000PCS/day
Detail Information
Product Description
Detail Information
Place of Origin:
China
Size:
2.4inch
Resolution:
320*240
Touch:
Resistance Touch
Display Area Dimensions:
48.96mm（L）×36.72mm（W）
External Dimensions:
98.51（L）×42.72（W）×3.35（H）
Flash:
8MB
Display Color:
65K（65536）
Supply Ability:
5000PCS/day
Highlight:

3584 Byte 2.4 Inch Lcd Display Module

,

2.4 Inch Lcd Display Module HMI

,

Resistive Touch LCD TFT Module

Product Description
2.4-inch Resistance touch COF HMI 2.4” serial port screen 240*320code-free font image

Hardware Feature
2.4” LCD-TFT  Resistance touch HMI COF module
320 x 240 screen resolution
RGB 65K true-to-life colours
3584 Byte SRAM
4 MB Flash memory

FPC wiring pin definition:
1.GND
2.GND
3.NRST
4.NC
5.NC
6.RXD
7.TXD
8.TF_CS
9.SPI_MOSI
10.SPI_CLK
11.SPI_MISO
12.NC
13.3.3V
14.3.3V





3584 Byte SRAM 2.4 Inch Lcd Display Module Resistive Touch COF HMI LCD TFT Module 0
