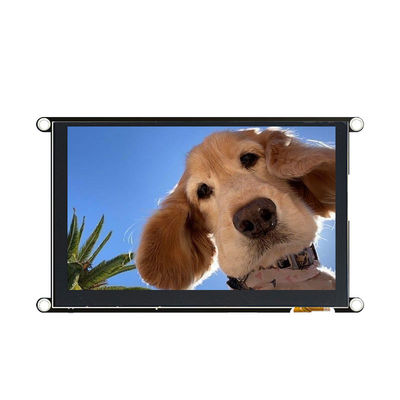

5V IPS View 800*480 Resolution TFT HMI Display Module Power Consumption About 320mA

5V IPS View 800*480 Resolution TFT HMI Display Module Power Consumption About 320mA

Model Number: JC8048W550
MOQ: 30PCS
Payment Terms: L/C, T/T
Supply Ability: 5000PCS/day
Detail Information
Place of Origin:
China
Power Consumption:
About 320mA
Driver Chip:
St7262
Operating Temperature:
-20℃~70℃
Resolution:
800*480(Pixel)
Type:
TFT
View:
IPS
Storage Temperature:
-30℃~80℃
Operating Voltage:
5V
Supply Ability:
5000PCS/day
Highlight:

800*480 Resolution HMI Display Module

,

320mA HMI Display Module

,

5V IPS View HMI Display Module

Product Description

WhatsApp : +86 18665846730
Product link :https://ja.aliexpress.com/item/1005006715794302.html?gatewayAdapt=glo2jpn

Data download link:http://pan.jczn1688.com/directlink/1/HMI%20display/JC8048W550.zip



Product Description:

The Human Machine Interface Display Module boasts of a vibrant RGB 65K color display that enhances visibility and readability. With a resolution of 800*480 pixels, the display is crystal clear and ensures that every detail is captured with precision.

Weighing at about 150g, this display module is lightweight and compact, making it easy to carry around and install. It is designed to fit perfectly into any workspace, providing an ergonomic and user-friendly interface.

The Human Machine Interface Display Module has a wide range of applications and is suitable for various industries, including manufacturing, automation, and control systems. It is perfect for monitoring and controlling various processes in real-time, providing accurate data and feedback.

In summary, the Human Machine Interface Display Module is a top-of-the-line product that provides a reliable and efficient solution for your monitoring and control needs. With its powerful driver chip, vibrant display, and lightweight design, it is the perfect addition to any workspace. Get yours today and experience the ultimate in Human Machine Interface Display technology!



Features:

  • Product Name: HMI Display Module
  • Resolution: 800*480(Pixel)
  • SKU: JC8048W550
  • Operating temperature: -20℃~70℃
  • Effective display area: 108.00* 64.80(mm)
  • Module size: 134.0*80.0(mm)
  • Touchscreen Operating Display
  • Human Machine Interface Display Module
  • Human Machine Interface Display Module


Technical Parameters:

Effective display area 108.00*64.80(mm)
Resolution 800*480(Pixel)
SKU JC8048W550
Power consumption About 320mA
Storage temperature -30℃~80℃
Product weight About 150g
Operating temperature -20℃~70℃
Operating Voltage 5V
Module size 134.0*80.0(mm)
View IPS
Touchscreen Operating Display Yes
Display Console Interface System Yes
Monitor Panel Display Unit Yes


Applications:

The JC8048W550 Display Module is designed to be a crucial component in any display console interface system. Its operating voltage is 5V, ensuring that it can be powered by most systems. It features an effective display area of 108.00*64.80(mm) and a resolution of 800*480(pixel), making it the perfect choice for a wide range of applications, including industrial control systems, home automation, and other human-machine interface systems.

Built to last, this display module has a storage temperature range of -30℃ to 80℃. Its power consumption is about 320mA, making it an energy-efficient option for any application.

Some of the product application occasions and scenarios for the JC8048W550 HMI Display Module include:

  • Industrial Control Systems: The JC8048W550 Display Module can be used in various industrial control systems, including manufacturing plants, power plants, and other heavy-duty industrial applications. Its high resolution and effective display area make it ideal for monitoring and controlling critical processes.
  • Home Automation Systems: The JC8048W550 Display Module can be used in various home automation systems, including smart homes and home security systems. Its high resolution and effective display area make it ideal for displaying information and controlling various home automation functions.
  • Medical Devices: The JC8048W550 Display Module can be used in various medical devices, including patient monitors, medical imaging equipment, and other medical devices. Its high resolution and effective display area make it ideal for displaying critical medical information.
  • Transportation Systems: The JC8048W550 Display Module can be used in various transportation systems, including automotive and aerospace systems. Its high resolution and effective display area make it ideal for displaying critical information and controlling various transportation functions.

With its high-quality build and versatile design, the JC8048W550 HMI Display Module is the perfect choice for any application that requires a reliable and effective display console interface system.



Customization:

- Model Number: JC8048W550

- Place of Origin: China

- Delivery Time: 28day

- Payment Terms: L/C, T/T

- Supply Ability: 5000PCS/day

- Operating temperature: -20℃~70℃

- Type: TFT

- Operating Voltage: 5V

- Module size: 134.0*80.0(mm)

- Size: 5.0 Inch

Our product offers a Touchscreen Operating Display, making it a convenient and easy-to-use Monitor Panel Display Unit. With our Display Console Interface System, you can customize the display to your specific needs. Contact us today to learn more about our product customization services!



Support and Services:

The HMI Display Module product technical support and services include:

- Troubleshooting assistance for any issues related to the product

- Firmware and software updates for the product

- Technical documentation and user manuals for the product

- On-site training and support services for the product

- Repair and replacement services for faulty or damaged products
